In today's digital and intelligent era, stable and reliable power is no longer a simple energy supply, but the lifeline of enterprise survival and development, and the bloodline of urban operation. An unexpected power outage can mean production line shutdowns, data center crashes, medical equipment failures, and even millions of financial losses.

When traditional substations are unable to do so due to long construction periods, difficult site selection, and complex transformations, mobile substations, the "special forces" of the power system, are redefining the boundaries of modern power security with excellent mobility, simplified deployment processes, and amazing reliability. What is – "electric heart on wheels"

"Mobile Transformer" is the abbreviation of Mobile Transformer Substation. In simple terms, it is a complete set of power equipment that is highly integrated into a semi-trailer or container (prefabricated cabin) with core equipment such as transformers, high and low voltage switchgear, and protection control systems.

According to the different moving methods and structures, mobile substations are mainly divided into two categories:

Vehicle-mounted: All equipment is integrated on a semi-trailer or trailer, and can be driven directly to the site after receiving instructions.

Skid-mounted/prefabricated cabin type: The equipment is installed in a standard steel structure box, quickly transferred by crane and trailer, and spliced together like building blocks after arriving at the site.

Its biggest feature is "can run" and "fast", so that the power guarantee will say goodbye to the passive situation of "and "endurance".

Landing and fighting: What are the application scenarios:

The existence of mobile substations is mainly to solve the temporary and urgent problems that cannot be solved by "fixed substations". Its core application scenarios include:

01 "First Aid Vehicle" for emergency repair

When natural disasters such as typhoons, floods, and earthquakes cause the stationary substation to collapse or be damaged, the mobile substation can rush to the rescue. It can quickly establish power supply points next to the rubble and on the roadside, restore residents' electricity and disaster relief command, and shorten the power outage time from "days" to "hours".

02 The "substitute king" of transformation and upgrading

Free civil construction investment: no station building construction and complex foundation engineering, and the initial cost is directly reduced;

High turnover reuse: Modular design supports rapid disassembly and cross-project deployment, maximizing the value of assets throughout their life cycle.

Flexible leasing services: rent on demand, eliminating the burden of purchase and operation and maintenance pressure, and improve both capital efficiency and resource utilization.

03 "Timely rain" of temporary loads

In the face of short-term or sudden power consumption scenarios such as large-scale events, festival power protection, agricultural irrigation peaks, and mining operations, traditional substations have a long construction cycle and low economy. With the agile characteristics of "on-demand and ready-to-use", mobile substations quickly respond to elastic loads, provide stable and reliable power support for critical periods and special scenarios, and are the optimal solution for temporary power supply needs.

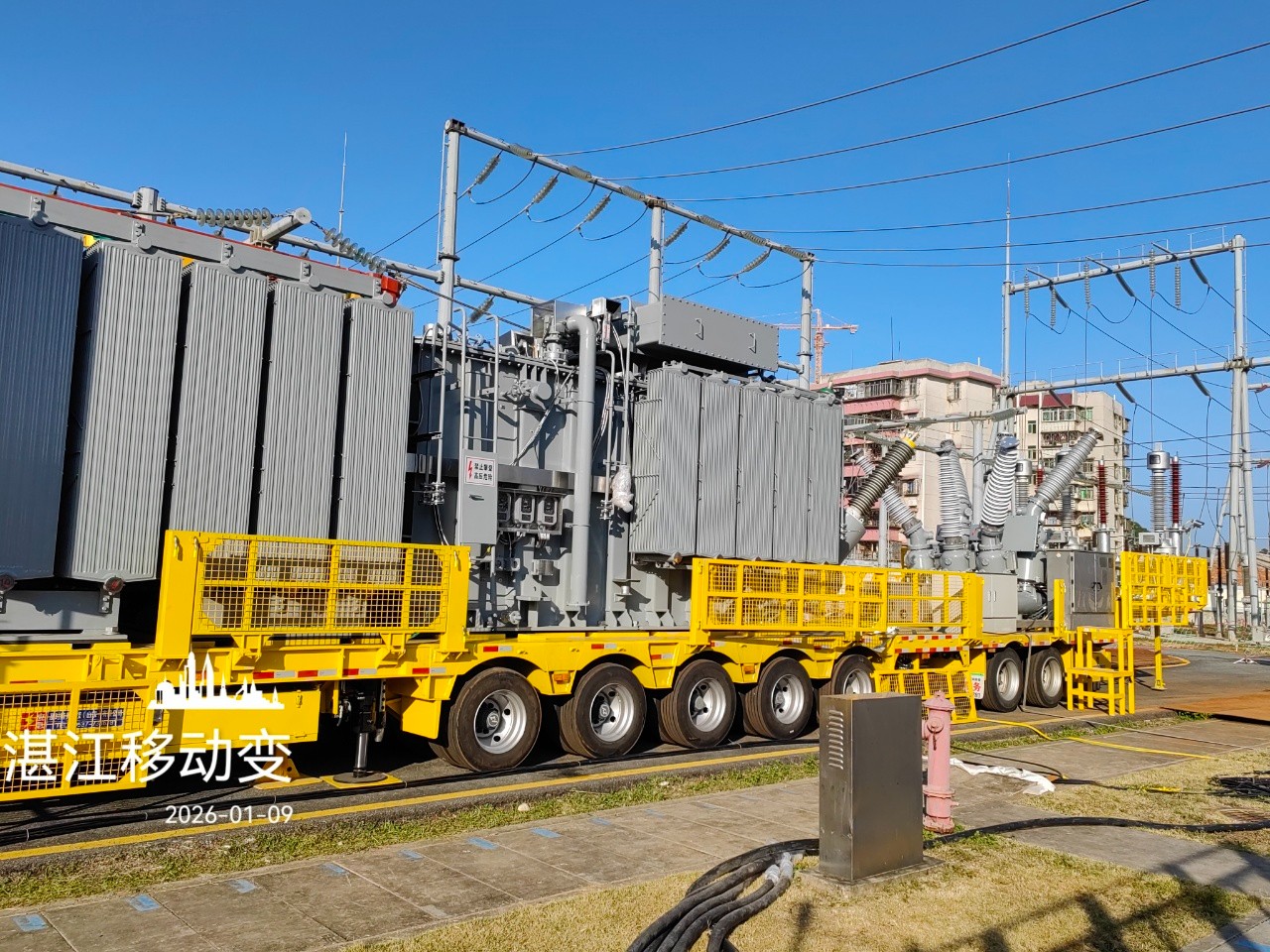

Zhanjiang Mobile Substation: China Southern Grid Standard AC and DC Power Supply System,

Create an emergency "power ark"

In the coastal area of western Guangdong, where typhoons are frequent, power security is not only a technical proposition, but also the bottom line of people's livelihood. Huiyeda successfully deployed a new generation of China Southern Grid standard mobile substation in Zhanjiang, injecting "hard-core confidence" into the safety production of an enterprise with a high-reliability AC and DC power supply system + intelligent ATS switching + inter-vehicle contact design.

System features:

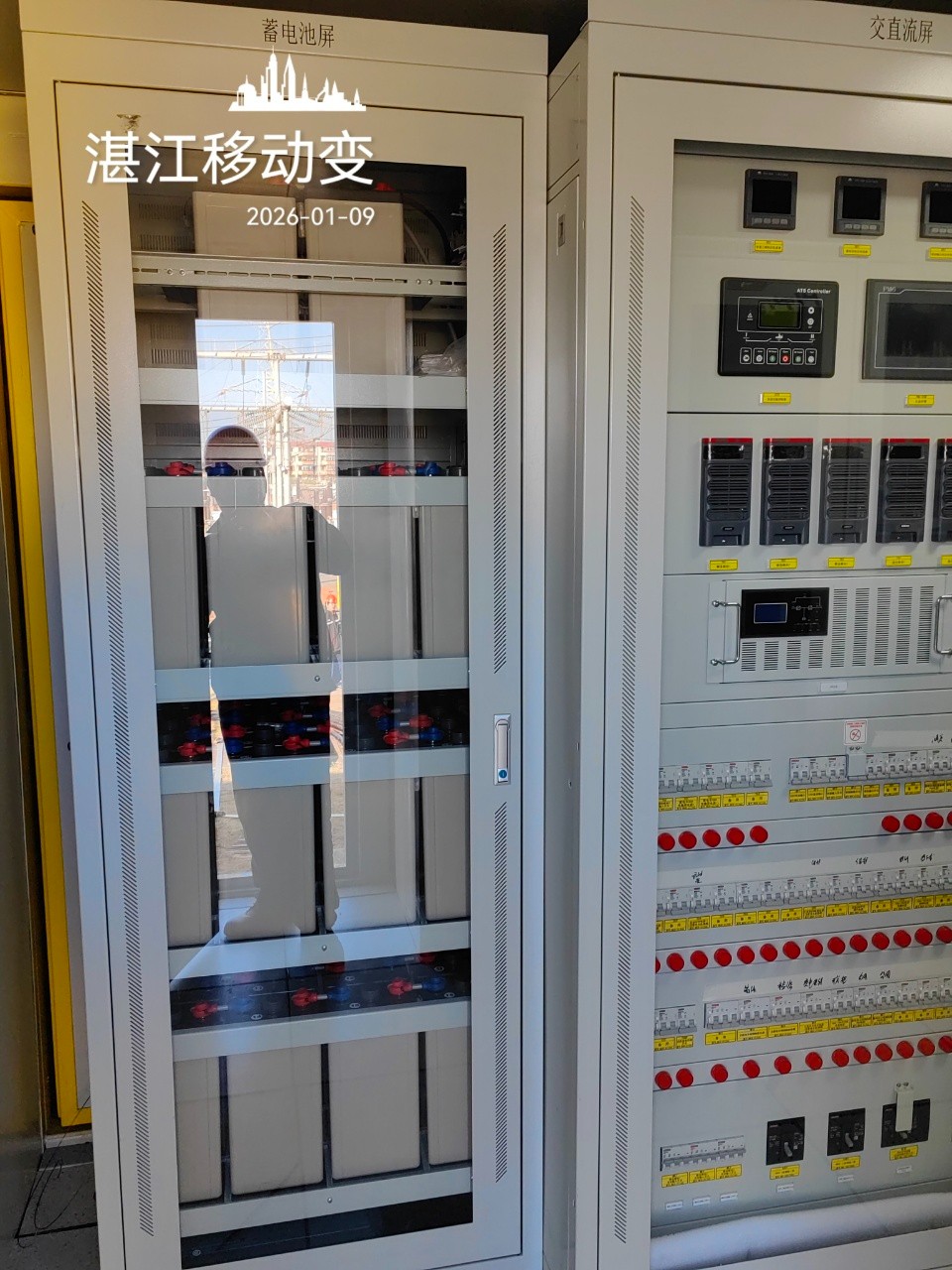

High-reliability AC and DC power supply: The integrated intelligent screen cabinet integrates AC/DC conversion, monitoring and protection functions, fully complies with the Q/CSG 1209007 standards of China Southern Grid, and realizes direct data connection to the scheduling master.

Long-term backup power supply: 2V× 108 200Ah South Grid certified lead-acid battery packs, ensuring 8 hours of continuous power supply for the whole station, with excellent low-temperature performance characteristics;

Intelligent ATS switching: manual/automatic dual-mode operation interface, equipped with mechanical and electrical double locking mechanism, the switching time < 100ms, completely eliminating the risk of misoperation; </b11>

Inter-vehicle contact design: The dedicated AC contact switch realizes the seamless power interconnection between the distribution vehicle and the substation workshop, and supports the free switching between "individual combat" and "collaborative power supply" modes to improve system redundancy.

1 dedicated AC contact switch realizes seamless power interconnection of distribution vehicles ↔ and substations, supports free switching between "individual combat" and "collaborative power supply" modes, and improves system redundancy

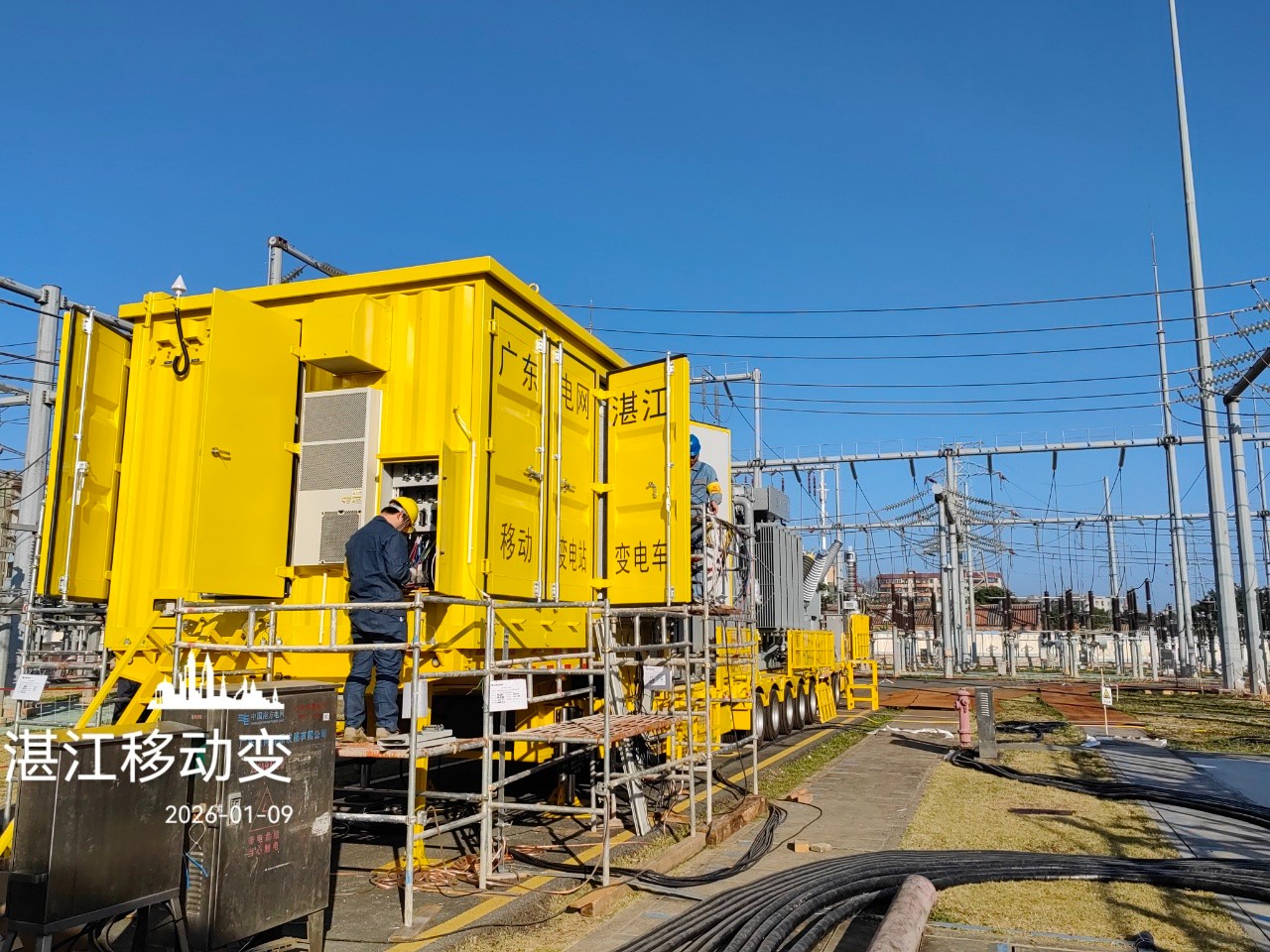

The project adopts the "skid-mounted + vehicle-mounted" composite technology route, integrating the equipment frame and core devices into the mobile chassis as a whole to realize the transformation of the construction mode. This scheme successfully solves the pain points of difficult site selection, long construction period and high civil construction cost of traditional substations, and sets a technical benchmark for power security in high-risk areas.

As a key equipment for emergency support and temporary power supply of the power system, the value of mobile substations is not only reflected in the rapid response ability, but also in the reconstruction of the deployment logic and resource utilization mode of power infrastructure through modular and standardized design. With the deepening of the construction of new power systems, their role in improving grid resilience, ensuring power supply reliability, and optimizing power resource allocation will continue to deepen.
